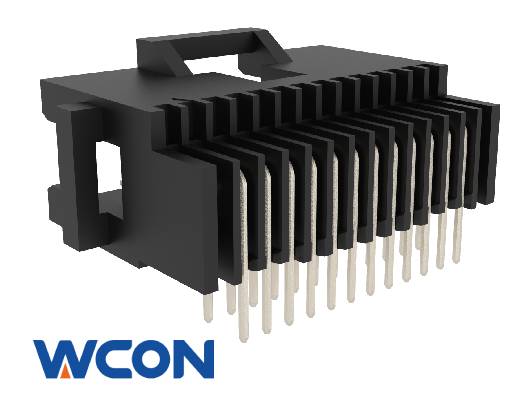

3144A-XXRXXBK00T3
1.27*2.54mm Pitch Box Header Connector,Male,13.40mm Height,Horizontal,Through Hole,Gold or Tin over Ni,Black,Without Fixing Hardware
快速询价
2D Drawing(PDF)
Packaging Specification
| 额定电压 | 100 V/AC | 工作温度 | -40°C - +105°C | |
| 额定电流 | 1 放大 器 | 触头材料 | Phosphor Bronze | |
| 接触电阻 | 30 mΩ 最大值 | 绝缘体材料 | PA9T | |
| 绝缘电阻 | 1000 MΩ 最小值 | 触点电镀 | Au&Sn | |
| 耐电压 | 250 V/AC | 包装 | Tube | |
ROHS
Compliant
REACH
Compliant
-
描述零件编号
-
1.27*2.54mm Pitch IDC Scoket Connector,Gold or Tin over Ni,Black
