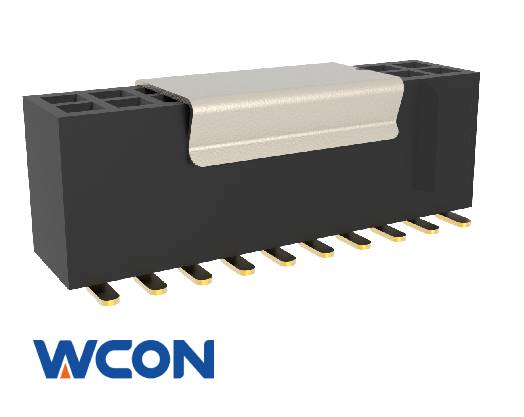

2344-2XXMXXCUNX5

Female Header Connector,Vertical,Surface Mount,Dual Row,4.30mm Height,Gold over nickel,Black，With Bump
Inquiry Now 注册
/assets/upload/2024-01-23/2344-2XXMXXCUNX5.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
额定电压 100 V/AC 工作温度 -40°C - +105°C
额定电流 1 放大 器 触头材料 Phosphor Bronze
接触电阻 20 mΩ 最大值 绝缘体材料 PA9T
绝缘电阻 1000 MΩ 最小值 触点电镀 Au&Sn
耐电压 500 V/AC 包装 Tube,Reel

ROHS

Compliant

REACH

Compliant
