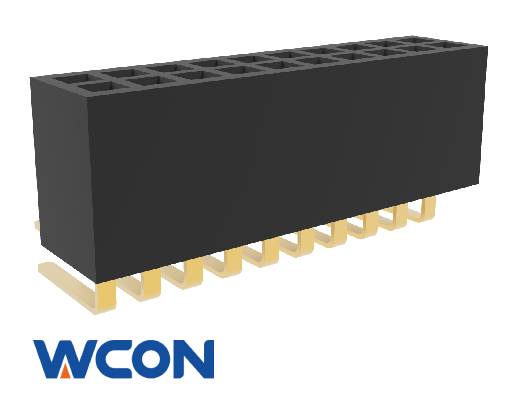

2344-2XXRXXCUNX1

Female Header Connector,Horizontal,Through Hole,Dual Row,4.30mm Height,Gold over nickel,Black
Inquiry Now 注册
/assets/upload/2024-01-23/2344-2XXRXXCUNX1.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
额定电压 100 V/AC 工作温度 -40°C - +105°C
额定电流 1 放大 器 触头材料 Phosphor Bronze
接触电阻 20 mΩ 最大值 绝缘体材料 PA9T
绝缘电阻 1000 MΩ 最小值 触点电镀 Au&Sn
耐电压 500 V/AC 包装 Tube

ROHS

Compliant

REACH

Compliant

  • 描述
    零件编号
  • Pin Header Connector,1.00mm Height,Gold or Tin over nickel,Black
    1310-series
  • Pin Header Connector,1.50mm Height,Gold or Tin over nickel,Black
    1315-series
  • Pin Header Connector,2.00mm Height,Gold or Tin over nickel,Black
    1320-series
  • Box Header Connector,5.70mm Height,Gold or Tin over nickel,Black
    3131-series
  • Box Header Connector,7.30mm Height,Gold or Tin over nickel,Black
    3133-series
  • Box Header Connector,XXXmm Height,Gold or Tin over nickel,Black
    3100-series
