2521-1XXMXXXUNX1

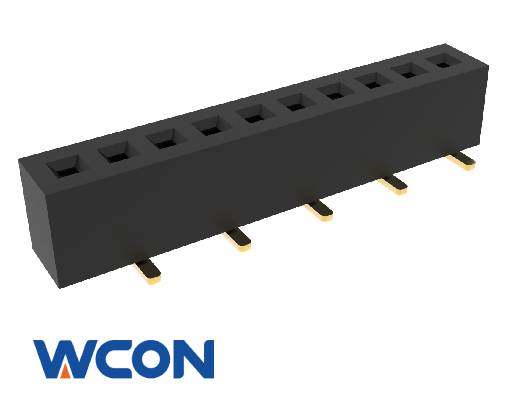

Female Header Connector,Vertical,Surface Mount,Single Row,2.10mm Height,Gold or Tin over nickel,Black,Type-1 or Type-2
快速询价
2D Drawing(PDF)
Packaging Specification
| 额定电压 | 100 V/AC | 工作温度 | -40°C - +105°C | |
| 额定电流 | 1 放大 器 | 触头材料 | Phosphor Bronze | |
| 接触电阻 | 20 mΩ 最大值 | 绝缘体材料 | PA9T | |
| 绝缘电阻 | 1000 MΩ 最小值 | 触点电镀 | Au&Sn | |
| 耐电压 | 500 V/AC | 包装 | Reel,Tube | |
ROHS
Compliant
REACH
Compliant
-
描述零件编号
-
Pin Header Connector,3.70mm Height,Gold or Tin over nickel,Black
-
Pin Header Connector,1.00mm Height,Gold or Tin over nickel,Black
