3132-XXMXXBK00X2

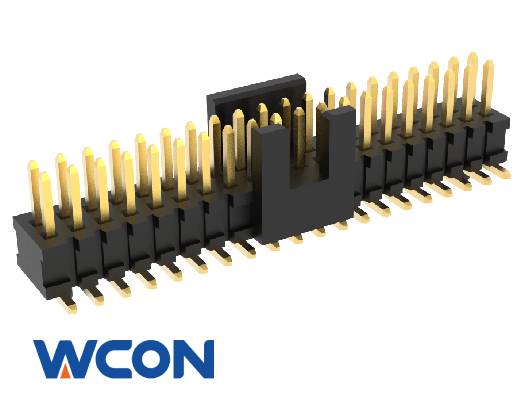

1.27mm Pitch Box Header Connector,Male,6.10mm Total Height,Vertical,Surface Mount,With Post,Gold or Tin over Ni
- 首页
- 3132-series
- 3132-XXMXXBK00X2
快速询价
2D Drawing(PDF)
Packaging Specification
| 额定电压 | 100 V/AC | 工作温度 | -40°C - +105°C | |
| 额定电流 | 1.0 放大 器 | 触头材料 | Brass | |
| 接触电阻 | 20 mΩ 最大值 | 绝缘体材料 | LCP | |
| 绝缘电阻 | 1000 MΩ 最小值 | 触点电镀 | Au&Sn | |
| 耐电压 | 500 V/AC | 包装 | Tube,Reel | |
ROHS
Compliant
REACH
Compliant
-
描述零件编号
-
1.27mm Pitch IDC Connector,Gold or Tin over Ni,Black
