6223-09FSNS2B06

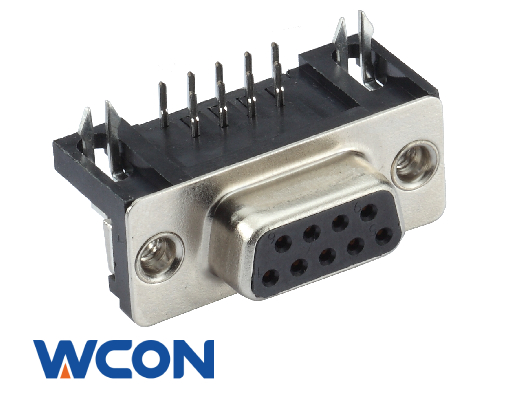

D-SUB Connector,Female,Dual Row,9 Circuits,Horizontal,Through Hole,Without Revit Lock With Screw,Gold or Tin over nickel,stainless steel shell,Black
- 首页
- 6223-series
- 6223-09FSNS2B06
快速询价
2D Drawing(PDF)
Packaging Specification
| 额定电压 | 200 V/AC | 工作温度 | -55°C - +105°C | |
| 额定电流 | 3 放大 器 | 触头材料 | Copper alloy | |
| 接触电阻 | 25 mΩ 最大值 | 绝缘体材料 | PBT | |
| 绝缘电阻 | 1000 MΩ 最小值 | 触点电镀 | Au&Sn | |
| 耐电压 | 500 V/AC | 包装 | Tray | |
-
描述零件编号
-

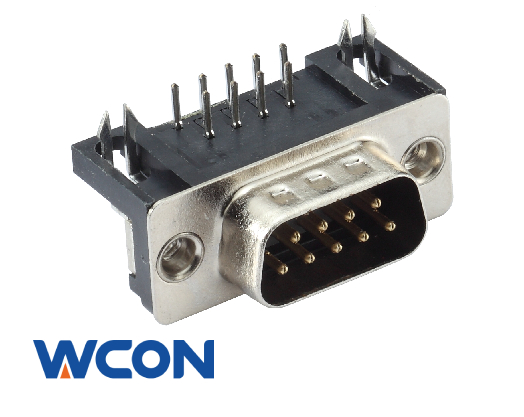

D-SUB Connector,Male,Dual Row,9 Circuits,Horizontal,Through Hole,With or Without Revit and Screw,Gold or Tin over nickel,Blcak
